A haptic device that might potentially enable blind users to interact

with 2D spatial contents
in real-time

me handle: represents the user’s avatar in 2D space

it handle: represents one other moving object

Pantograph

great compromise between low motor forces required (like in an x/y table aka gantry) and freedom of movement (like in a robot arm)

4 linkages $\to$ 1 end effector

Does not use gears in order to avoid slack

alternatives: friction drive, capstan, archimedes drive, etc.
chosen: direct drive with high amount of current (because of leverage)

Dual Panto Projects

2D spatial: 2D space must play a key role to succeeding at the task (tasks that aren’t better solved using iPhone “voiceover”)
real-time: fast-paced app, more likely a game (e.g. porting simple 80’s games), but stay within bandwidth of device/user (sparse world)
- alternatively complex data (sensemaking): let user explore the complex world, but then that world has to be stationary, to give user time to figure it out

Right level of challenge (balancing)

Push the boundaries of what blind people can do (e.g., towards what a sighted person can do)

narrow down the app to a task (editing or sensemaking)
simplify games (i.e. Tetris with 3 columns)

Handle Tracking

14 bits digital encoder (absolute) meassures rotation of magnet

Forward kinematics (FK)

Given joint angles and the length of linkages, calculate the position of end effector: $P_{E} = f (θ_{l}, θ_{r})$

angles $θ_{l}$ and $θ_{r}$ can be read from encoder
lengths $l_{lower}$ and $l_{upper}$ are known
positions $motor_left_{x, y}$ and $motor_right_{x, y}$ are known
end effector position ( $P_{E}$ ) can be calculated using trigonometry / vector addition and rotation

Inverse kinematics (IK)

Given the target position, calculate the motor angles: $(θ_{l}, θ_{r}) = f^{- 1} (P_{E})$

the angles can be calculated analogously to FK
however, sometimes multiple angle combinations lead to the same $P_{E}$

Iterative method

Mathematical procedure to generate a sequence of approximate, yet continuously improving solutions (removes ambiguities)

make slight adjustments in $P_{E}$ until desired position is reached
- e.g. both motors left $\Rightarrow$ end effector moves left
- e.g. both motors inwards $\Rightarrow$ end effector moves outwards
- etc.
so far this model is ignorant of mass and inertia (Massenträgheit) $\Rightarrow$ oscillation | see Hapkit controls
therefore use force proportional to error $\Rightarrow$ no more oscillation, instead springy
solution: implement PID controls

Extra: p5.js vector syntax

var vec = createVector(10, 5);
vec.normalize(); // normalizes to length 1
vec.rotate(PI); // rotates the vector by the specified angle
vec.mult(2); // multiplies each component of the vector by the specified value

var vec_length = vec.mag();
var vec2 = vec.copy(); // create a copy in JavaScript

var add_vec = p5.Vector.add(vec, vec2); // static method on the Vector class
var sub_vec = p5.Vector.sub(vec, vec2); // static method on the Vector class

Rendering Walls

Because of high resolution encoder and quick reaction times, DualPanto only implements proportional control (trimmed like a really stiff spring)

Springs

spring: converts force into position

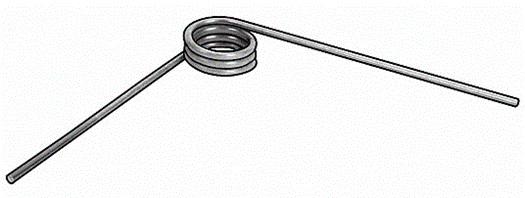

torsion spring: converts torque (Drehmoment) into position $\Rightarrow$ torque sensor
hooke’s law: the force of a spring is proportional to the displacement with spring constant $k$

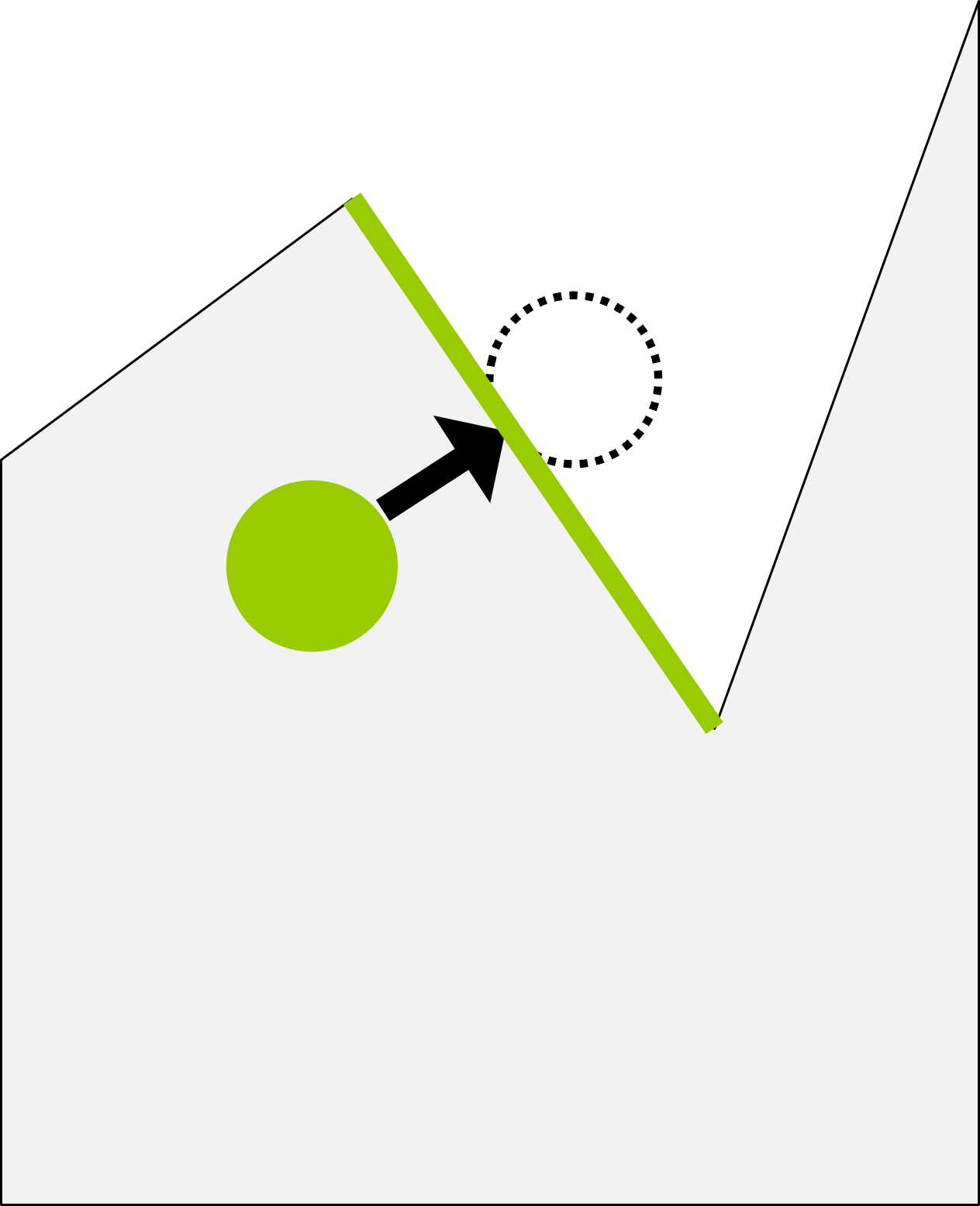

God object

Into which direction should the hapkit push back, when a wall has been passed?

Unity me: stays outside the wall
God object: a proxy object which behaves as if the object were infinitely stiff $=$ ideal position of end effector (unity me follows handle)

Tracking mechanism

On edge entry: create a line segment from the previous to the current “me” position test against all edge in the scene. If it intersects then activate the edge.
Convex corners: keep edge active, until god object outside of boundaries (length) of edge $\Rightarrow$ search for new active corner

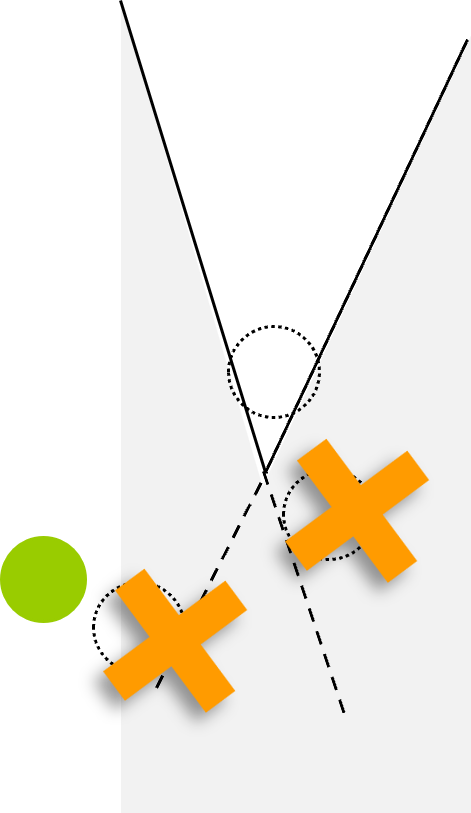

Concave corners: (optimization problem: minimize distance to active edge such that point is always on the edge)
1. calculate three points: closest points on both edges and intersection point of the two edges
2. remove any points, that are inside the wall
3. choose the one that is closest to me handle

Motor output

We need some function

input: desired force vector
output: motor torques / voltages that produce those forces
solution: inverse kinematics towards a target slightly (1mm) off the end effector
problem: target further away from the motors $\Rightarrow$ longer levers $\Rightarrow$ less force applied

Mesh map

draw a map by rotating one motor while fixing the other
knowing this mesh allows us to adjust motor power so as to compensate for variations in lever, thus get consistent haptic forces
challenge: mesh is in motor torque $θ_{1}$ and $θ_{2}$ , how to translate to $x$ and $y$ coordinates?

Jacobian matrix

a matrix of all first-order partial derivatives of a function
- used to map vectors (in our case force vectors) in one variable space to another
- in our case: calculated for a specific motor angle constellation (position on the mesh map)
$Δ P = J \cdot Δ θ$ ( $J$ is Jacobian matrix) and $F \cdot Δ P = T \cdot Δ θ$ ( $F$ is force and $T$ is torque)
- that gives $F \cdot J = T$
- Jacobian is vector map and Force-Torque map
part of panto.cpp at dualpantoframework (firmware)

DualPanto Capabilites

Design choices

User movement:

freely in 2D space
along lines (what graph structure?)
2D space on a grid (quad, hex, triangle, etc.)
1D space with detents

User choice making:

no choices needed
speech input
mechanical GUI widget (e.g. switch)

Me and it introduction:

no need to explain
explanation upfront
synchronized movement with speech

Handle choices:

“me” and “it” handle
two “me” handles
two “it” handles

More than two objects in the world:

nope, just two things to deal with
“it” always jumps to the closest “it” object in the world
“it” jumps to the closest “it” when previously selected “it” dies
user can manually switch what “it” represents

DualPanto Toolkit Capabilities

General observations

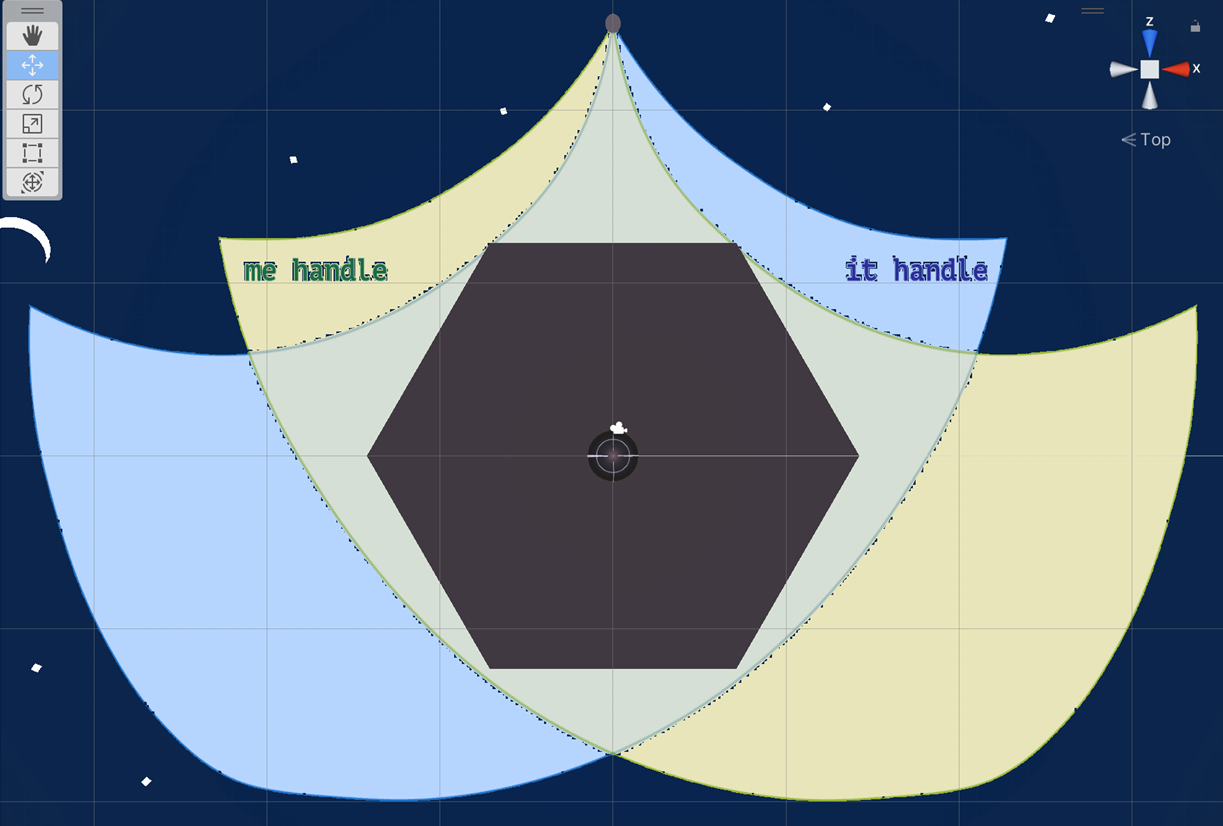

there exists some me-only and it-only space $\Rightarrow$ very uncommonly used

Already implemented

Rooms:

can be built using rectangles (with PantoBoxCollider.cs) as walls
walls should overlap, to form solid corners
to start the app, move me handle into room (using MoveToPosition toolkit function)
object placement:
- along the walls
- in the middle of the room $\Rightarrow$ use passable rails (Rail.cs) to guide user
room shape:
- convex
- non-convex $\Rightarrow$ tracing the outline of the room is impossible (already for a simple L shape) | possible solutions using rails or grid movement
- nooks and hallways $\Rightarrow$ hard to get a sense of

GUI widgets:

sink using CenterForceField.cs
hill using CenterForceField.cs
dial using PantoCircularCollider.cs

Information visualisation:

point at objects by rotating unity object of “me” / “it” handle

Haptic feedback:

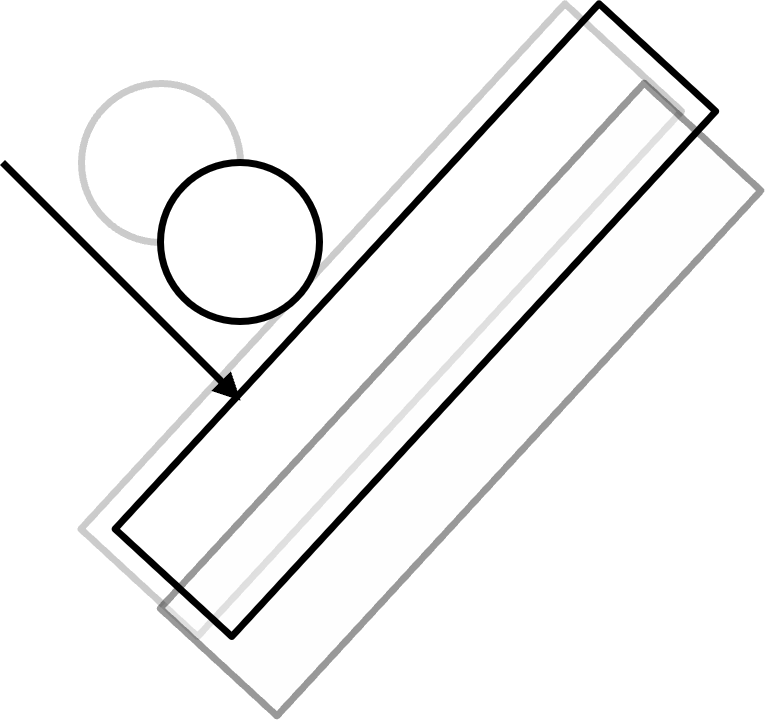

recoil (Rückstoß) using MoveToPosition()
show velocity using recoil

Currently being implemented

Paths:

using Path.cs (WIP)
can connect multiple rooms (instead of hallway)
can provide a movement grid $\Rightarrow$ paths with bifurcations (Abzweigungen)
