Extensive Form Games

Previously: Simultaneous Play

• single decision
• simultaneously
• without knowledge of other’s choices

Now: Sequential Play via Extensive Form Games

• possibly multiple decisions
• sequentially
• with knowledge of other’s choices
• capturing e.g. chess and Tic-Tac-Toe

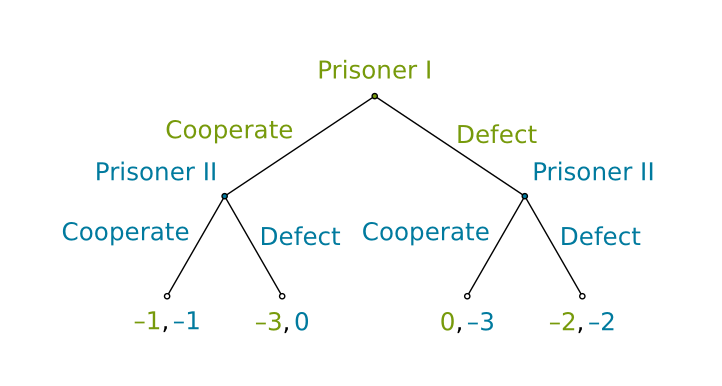

Game Trees

Extensive Form Games can bei represented as game trees $G=(V,E)$

• Leaves correspond to outcomes and are labeled with player’s payoffs in the outcome
• Internal nodes correspond to decision nodes and are labeled with the player who makes a decision (i.e. picks an edge) in this node
• Edges correspond to a player’s action and a re labeled with the actions name
• Notation $V_i$ for the internal nodes of player $i$, $A_v$ for the actions available in vertex $v$

Strategies

• A pure strategy ${\tau }_i$ for player $i$ is a function that maps each of $i$‘s internal decision nodes $v\in V_i$ to an action available in $v$ (i.e. ${\tau }_i(v)\in A_v$)
• A strategy profile $\tau =({\tau }_1,\dots ,{\tau }_n)$ induces a unique root leaf path in the tree leading to a unique outcome
• $u_i(\tau )$ is the utility player $i$ has for the outcome induced by $\tau$

---

Nash Equilibria

A strategy profile $\tau =({\tau }_1,\dots ,{\tau }_n)$ is a Nash equilibrium if for every player $i\in \mathbb{N}$ and all of $i$‘s strategies ${\tau }^{\prime }$:

$u_i(\tau )\ge u_i({\tau }^{\prime },{\tau }_{-i})$

No player can modify the edges they select so that the induced root-leaf path leads to a leaf with a higher utility for the player

Backward Induction: Computing a Nash Equilibrium

We fix “best responses” starting from the bottom of the tree

Algorithm: Repeat until only root remains

• Pick a decision node $v\in V_i$ for some player $i$ whose successor are all leaves
• Let $a^{\ast }\in A_v$ be the action leading to the successor $v^{\ast }$ of $v$ with the highest utility for $i$
• Set $\tau (v):=a^{\ast }$. Delete all successors of $v$ and set $u_j(v):=u_j(v^{\ast })$ for all player $j\in \mathbb{N}$

Implications:

• Backward induction always terminates in polynomial time
• The computed strategy profile is a Nash equilibrium
• Each extensive form game has a Nash equilibrium

Subgame Perfect Nash Equilibrium

Players will make rational decisions in every decision node

• Each subtree in the game tree of an extensive form game $G$ defines a subgame
• A strategy profile $\tau =({\tau }_1,\dots ,{\tau }_n)$ is a subgame perfect Nash equilibrium of a game $G$ if it induces a Nash equilibrium in each subgame $G^{\prime }$ of $G$

Observations:

• Backward induction computes a SPNE
• Every extensive form game admits a SPNE
• Is every SPNE a NE? ✓

---

Extensive Form Games as Normal Form Games

Every extensive form game $G$ can be represented as a normal form game, where

• the strategy space $S_i$ for player $i$ is the set of $i$‘s pure strategies in $G$
• $u_i({\tau }_1,\dots ,{\tau }_n)$ is the player $i$‘s utility for the outcome in which player $i$ picks ${\tau }_i$ (for all $i\in \mathbb{N}$)

Disadvantages:

• exponential blowup
• some solution concepts and algorithms are specialized for extensive form games
