Agile & Scrum

Agile Scrum Basics

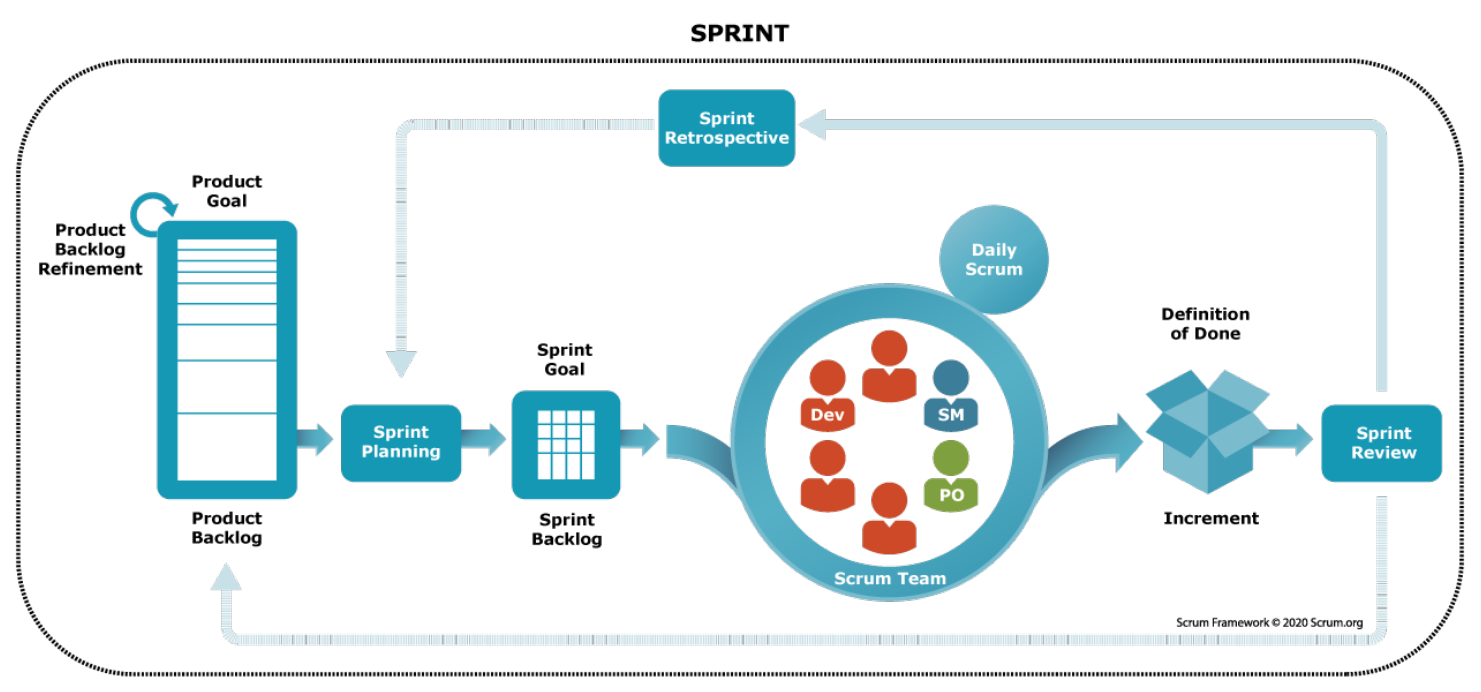

Sprint: container for all the work that is done by the team to achieve a Sprint Goal

• no work outside the Sprint | no gaps between Sprints
• starts with a Sprint Planning meeting
• lasts no longer than a month
• ends with two reviews: Sprint Review (work completed) & Sprint Retrospective (process)

Sprint Backlog: all the work to be done by the team over one or more Sprint Goals

Sprint Planning: select product backlog items to be part of Sprint Goal | focus on value that can be created by the Sprint

• Sprint Goal: selection of items that were estimated and prioritized to be done

Sprint Review: working meeting where the Scrum Team presents their completed work to their stakeholders and asks for feedback and guidance

• used to discuss progress towards Product Goal, emerging changes in the business and technical landscape as well as future collaboration strategies

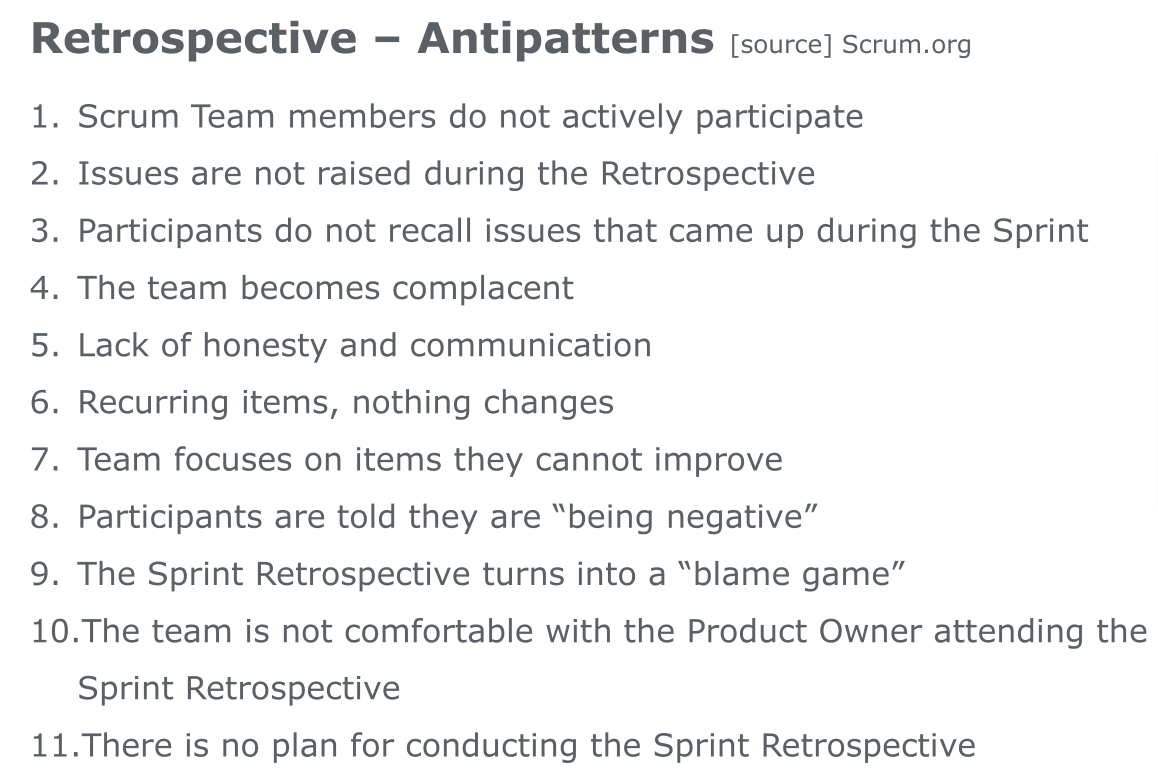

Retrospective:

• What went well in the Sprint? : collaboration, impediments and handling of them, Definition of Done still appropriate?
• What can be improved? : process & methods, tooling, communications, attitude (+ priority among those issues)

Lifecycle of Backlog Item

1. Backlog: waiting to be estimated and prioritized
2. Ready / To-Do: waiting to be added to a Sprint Goal
3. In Progress: item is in the current Sprint Goal
4. Review: implemented (and tested), waiting to be reviewed
5. Done: finished by the team

Definitions

Definition of Ready: The team defines the criteria to decide if a User Story can be part of a Sprint

• e.g. dependencies accounted for, acceptance criteria defined, estimation finished, value and priority aligned on current Sprint Goal, design assets available, testing defined (manual / automated)

Definition of Done: The team must specify the criteria for deciding if a User Story is finished, hence it can be presented (demo) to the user during the Review Meeting

• e.g. fully reviewed, tested without errors, documentation updated, implementation compliant with standards

User Stories, Epic, Initiatives

User Story: short requirements or requests written from the perspective of an end user

Epic: large body of work that can be broken down into smaller items (called stories)

• Systemfunktionen

Initiative: collection of epics that drive toward a common goal

• größere geschäftliche und gesellschaftliche Ziele

Theme: strategische, übergeordnete Zielsetzung eines Unternehmens

• z.B. “in 10 Jahren CO2-neutral werden”
• zur Verwirklichung müssen mehrere Initiativen ins Leben gerufen werden

Theme > Initiative > Epic > User Story

---

User Stories

1. Small piece of functionality
2. Describe from the perspective of the user
3. Deliver value to the user

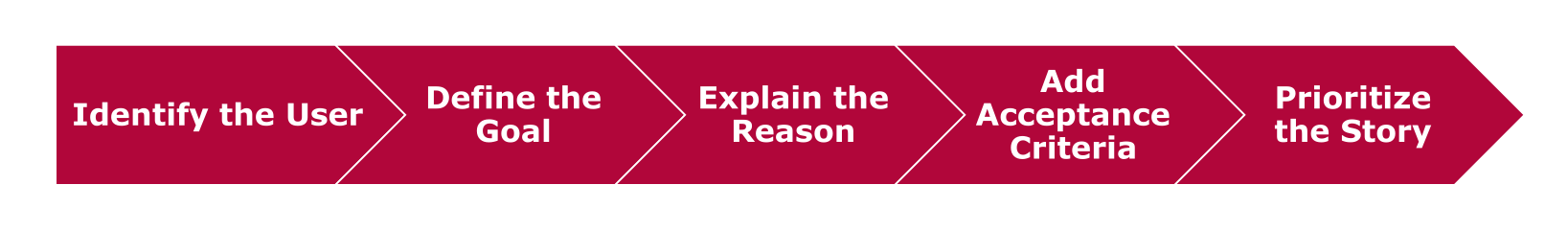

As a [type of user], I want [goal] so that [reason].

1. User role: this could be a specific type of user, like an “admin” or “customer,” or a more general role, like “end user”
2. Goal: this should be a single, clear objective
3. Reason: explain why the user wants to achieve this goal | provide context and justification for the feature
4. Acceptance Criteria: set the expectations that have to be met for the user story to be closed | often written as a checklist of specific requirements

Benefits

• User centric: keeps the focus on the user’s needs
• Collaboration: Encourages teamwork and communication
• Flexibility: Easily adjustable as priorities change
• Clarity: Offers clear guidance on what needs to be built

Common Mistakes

• Vagueness: “As a user, I want a better dashboard”
• Too large: “As an admin, I want to manage users, roles, and permissions”
• Focusing on Solutions: “As a user, I want a drop-down menu to select my country”

Examples

1. As an online shopper, I want to receive price alerts so that I can buy my favorite products a lower prices
2. As a frequent traveler, I want to receive flight status updates so that I can plan my airport arrival accordingly
3. As a customer, I want to receive an email confirmation so that I know my order has been processed

INVEST Principles

• Independent: They should stand alone and not depend on other stories
• Negotiable: They should be flexible and open to discussion
• Valuable: They should deliver value to the user
• Estimable: They should be easy to estimate in terms of time and effort
• Small: They should be small enough to complete within a single sprint
• Testable: They should have clear acceptance criteria

---

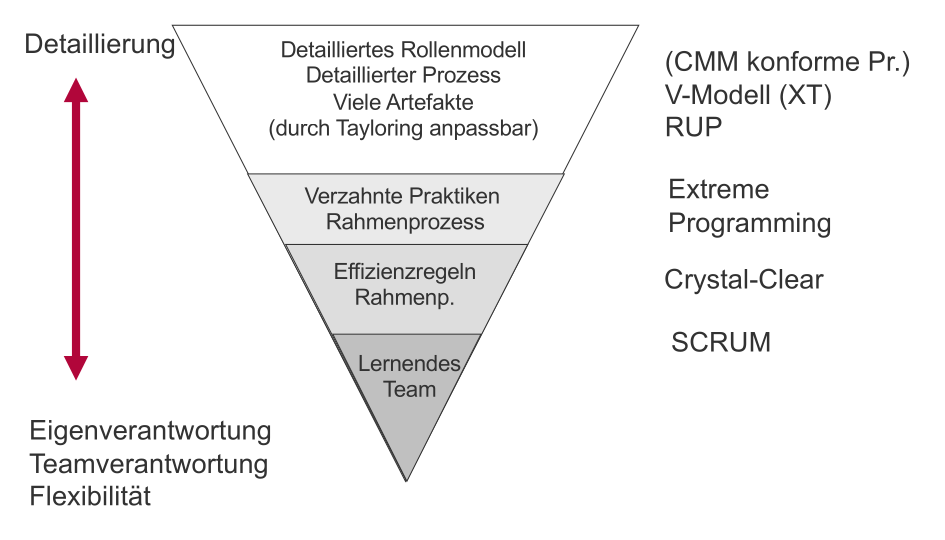

Agile

Ermöglicht bessere Abstimmung zwischen Werten $\to$ Prinzipien $\to$ Methoden $\to$ Tools

• Wohldefinierte Probleme: klare Ziele und Lösungswege $\to$ Engineering als Optimierungsproblem

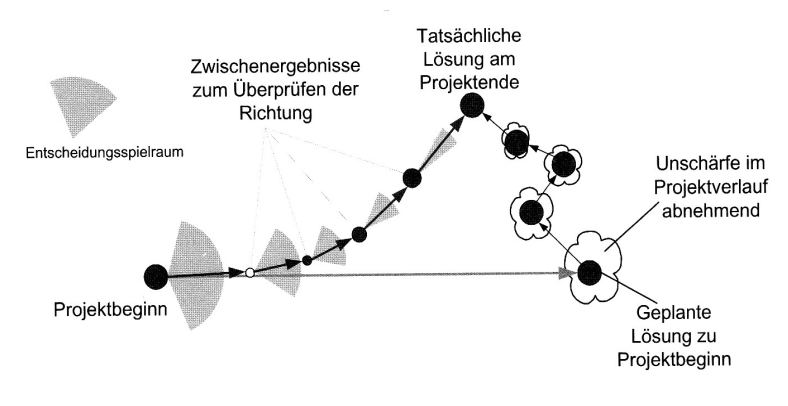

• Verzwickte Probleme (wicked problems): unklar definiert, Verständnis durch Lösungsentwicklung $\to$ Engineering als iteratives Suchproblem

The Agile Manifest:

• Individuen und Interaktionen mehr als Prozesse und Werkzeuge
• Funktionierende Software mehr als umfassende Dokumentation
• Zusammenarbeit mit Kunden mehr als Vertragsverhandlung
• Reagieren auf Veränderung mehr als das Befolgen eines Plans

---

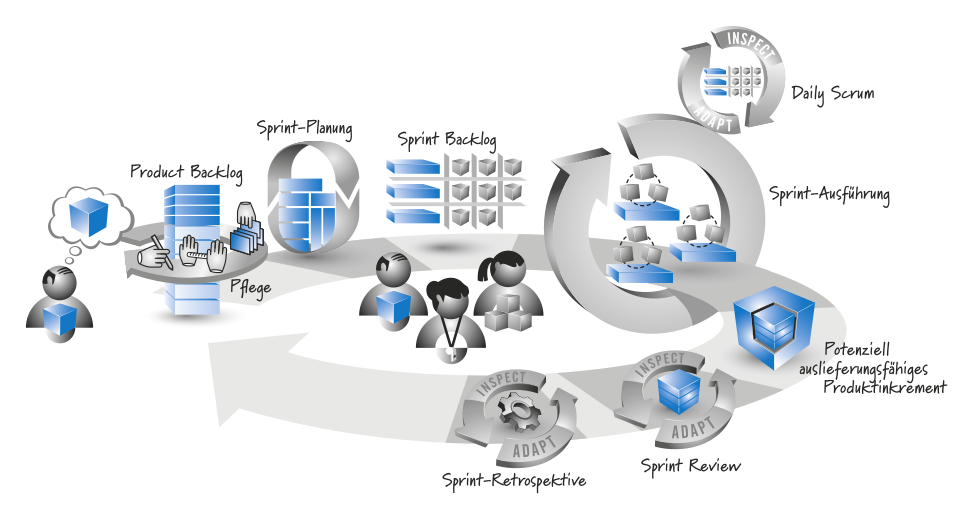

Scrum

Sprints (Aktivität):

• Time-Boxen / Iterationen (feste Länge $\le$ Kalendermonat)
• sollte etwas von greifbarem Wert schaffen
• normalerweise: während des Sprints keine Änderungen, die das Ziel gefährden

Rollen:

• Product Owner: was und in welcher Reihenfolge
• Scrum Master: Nutzung des Scrum-Frameworks anleiten
• Entwicklungsteam: verantwortlich das zu liefern, was der Product Owner haben möchte

Product Backlog (Artefakt):

• Elemente: erforderliche Funktionen / Eigenschaften, technische Verbesserungen, etc.
• Elemente werden durch Product Owner mit Stakeholdern gesammelt
• Arbeitsreihenfolge wird durch Product Owner bestimmt
• Pflege (Grooming | Aktivität): Anlegen und Verfeinern der Elemente, Priorisierung auf Basis der Kosten (z.B. Story-Punkte oder Idealtage)

Sprint-Planung (Aktivität):

• Planungstreffen mit Owner, Entwicklungsteam und Scrum Master
• Owner und Entwicklungsteam einigen sich auf Sprint Goal
• Entwicklungsteam ermittelt Elemente mit höherer Priorität, die realistisch im nächsten Sprint umgesetzt werden können
• ca. 2 Stunden Planung pro Sprint-Woche

Sprint Backlog (Artefakt):

• Aufteilen der angestrebten Funktionen in eine Reihe von Aufgaben (Just-in-time-Planung)
• Aufwandsschätzung der Aufgaben (typischerweise in Stunden)

Sprint-Ausführung (Aktivität):

• Entwicklungsteam führt unter Anleitung des Scrum Masters alle Aufgaben durch
  • Reihenfolge und wie der Arbeiten selbstbestimmt
• Ziel ist das Erreichen des Done-Zustandes
  • Fertig (Done | Artefakt): Aus Sicht des Scrum-Teams ein potenziell auslieferungsfähiges Produktinkrement (Definition variabel)

Daily Scrum (Aktivität):

• Tägliches zeitlich begrenztes Treffen (max. 15 Minuten)
• Was wurde geschafft? Woran wird nun gearbeitet? Welche Hindernisse gibt / gab es?

Sprint Review (Aktivität):

• Teilnehmer: Scrum Team, Stakeholder, Sponsoren, Kunden sowie aus anderen Teams
• Fokus: Überprüfen der gerade fertiggestellten Funktionen im Kontext, Beeinflussung der weiteren Entwicklung
• Scrum Team: entwickelt ein tieferes Verständnis für die Geschäfts- und Marketingseite ihres Produkts

Sprint Retrospektive (Aktivität):

• Teilnehmer: Scrum Team, Scrum Master und Product Owner
• Fokus: stetige Verbesserung des Prozesses
• Scrum Team: sollte konkrete Aktionen zur Prozessverbesserung für den nächsten Sprint identifiziert haben

---

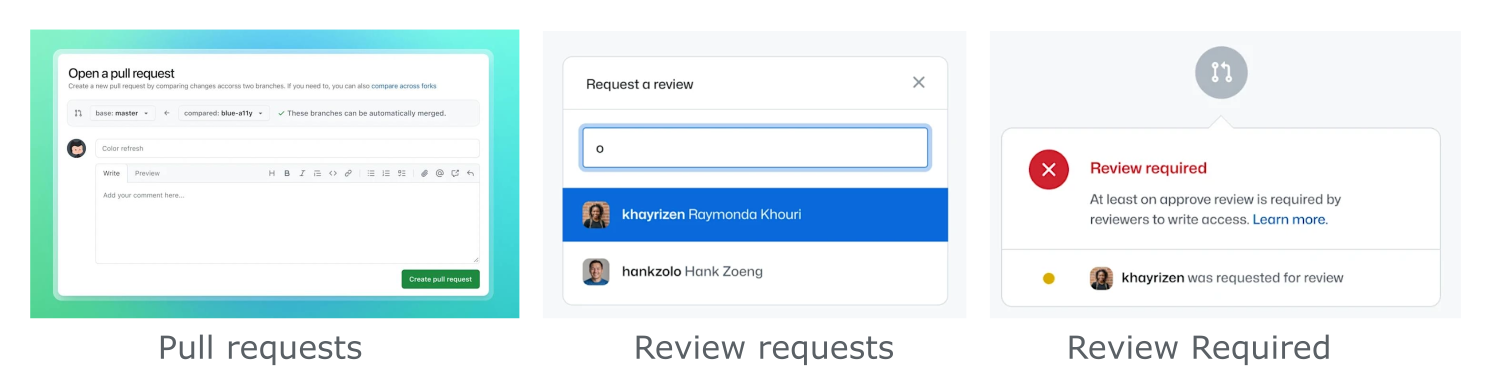

Code Review

Methodology to inspect the source code for compliance and possible bugs

• Improves code quality, promotes code ownership of the team and can help onboard new members
• Best practices:
  • create a checklist (e.g. readability, security, test coverage, architecture, reusability)
  • code review metrics (e.g. inspection rate, defect rate, defect density)
  • provide rich feedback: what, why, and how to change

---

Planung

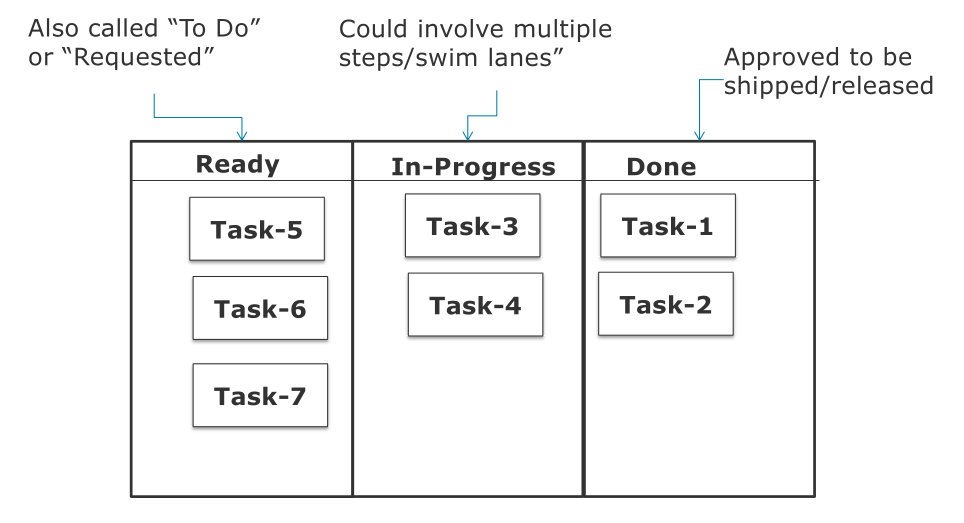

Kanban Board

• visualize work (minimize work invisibility)
• limit work-in-progress
• maximize efficiency

• Ready: understood by team | has business value | dependencies identified | is small | clear acceptance criteria
• Done: built without errors | acceptance criteria are met | demonstrated to stakeholders | approved by Product Owner | documentation updated

Scrumban

Splitting User Stories: Smaller User Stories

1. are easier to understand $\Rightarrow$ less bugs
2. help identify waste $\Rightarrow$ promotes simplicity
3. are quicker to release $\Rightarrow$ faster feedback loop

• User Story: provides business value
• Task: doesn’t provide business value

Velocity, Burndown & Burnup

• Velocity: how many story points the team delivered in a sprint
  • $\Rightarrow$ prediction of time, cost and next sprint
  • Capacity Planning: necessary size of the team (future)

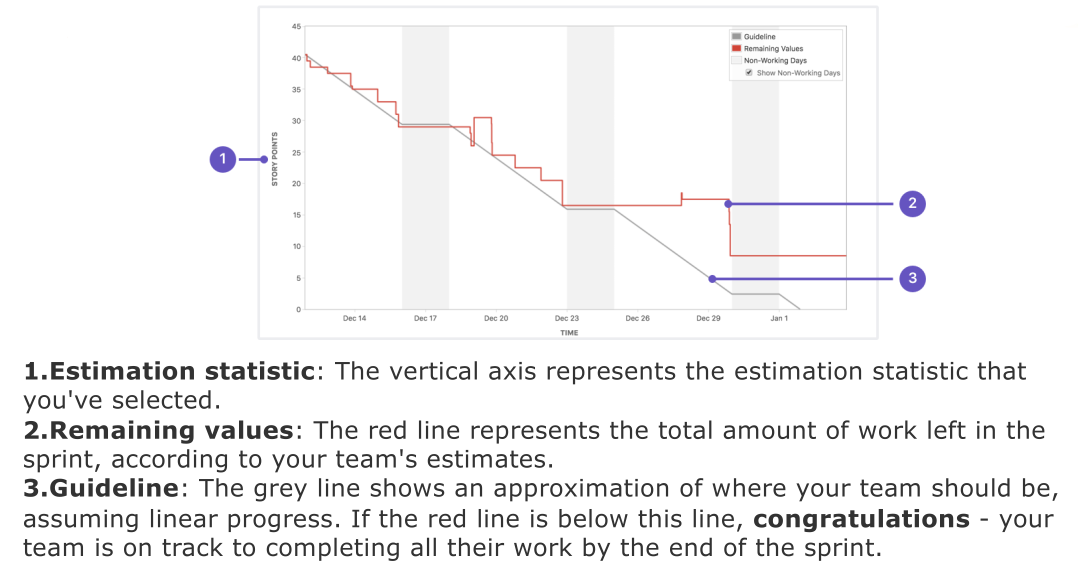

• Burndown Chart: shows
  1. the amount of work that has been completed in an epic or sprint
  2. the total work remaining
  • $\Rightarrow$ prediction of completion time & identification of scope creeps

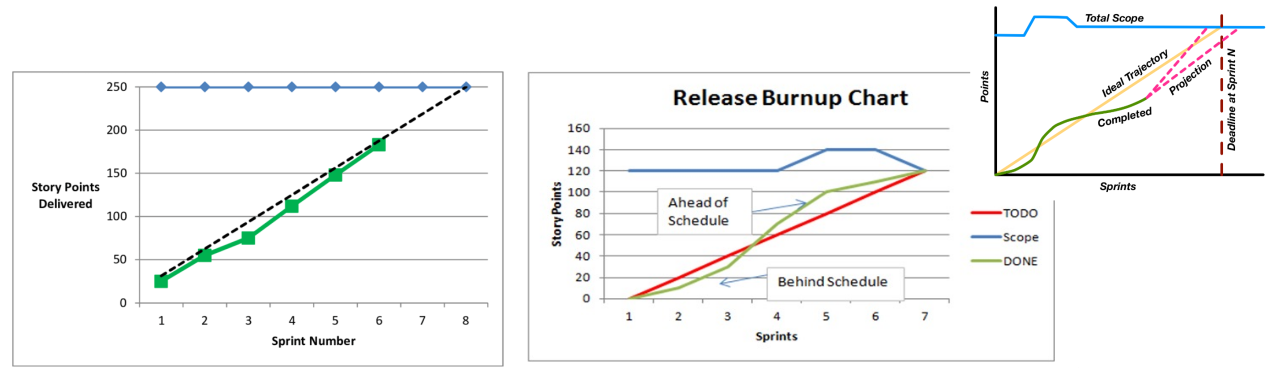

• Burnup Chart: total work planned vs. work completed to date
